ATL - Hartsfield/Jackson Atlanta Intl

Attribution: Brent Unkrich

Attribution: TheDrifter

Attribution: Bruce Johnson

Attribution: Wet Sofa

Attribution: Snehasish Paul

Attribution: Angela Morris (Αγγελική)

Attribution: Wilson Alexander Vargas Bernal

Attribution: Michael Clark

Attribution: Snehasish Paul

Attribution: Jeff Stilwell

Tags

Public

Undocumented

METAR / TAF

Edit Tags

Food

Camping

Lodging

Car Rental

Bicycles

Swimming

Golfing

Fishing

Hot Springs

Museum

Flying Clubs

Airpark

Upcoming Events

No upcoming events. Is anything happening here soon?

Description

Transient Parking

Fuel Location

Landing & Tie-down Fees

Crew Car Availability

Flying Clubs

WiFi Access

Airport Statistics

Are you familiar with this airport? Help complete its documentation by adding some of the following info if applicable:

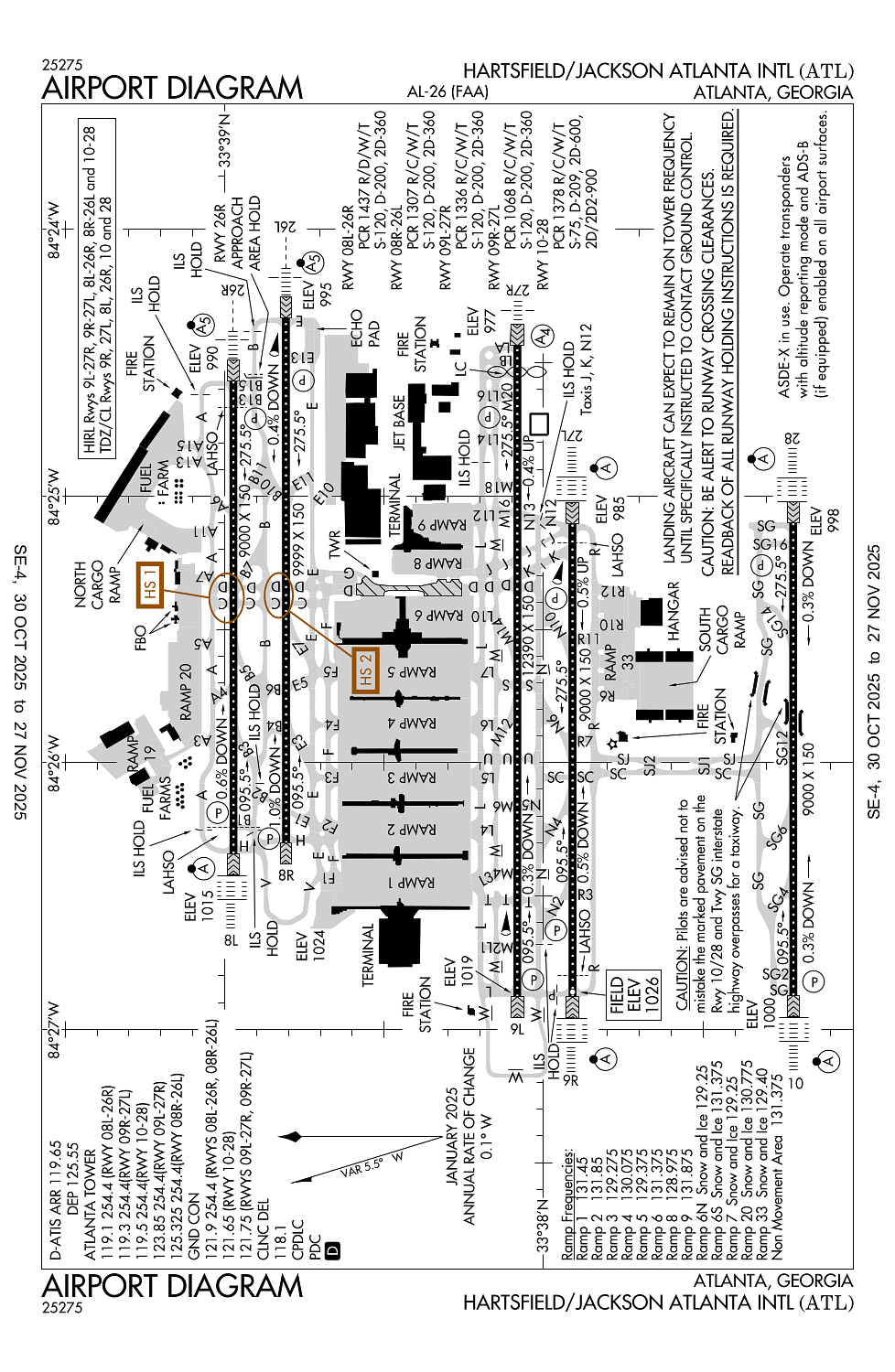

Airport map annotations
Fuel pump location
WiFi availability

Location: Atlanta, GA

Elevation: 1,026ft

Sectional: Atlanta

Activation date: Sep 1942

Fuel: 100, 100LL, A

Runway 09L/27R: 12,390ft

Runway 08R/26L: 9,999ft

Runway 08L/26R: 9,000ft

Runway 09R/27L: 9,000ft

Runway 10/28: 9,000ft

Access: Open to the public

Current Weather — VFR

Weather data is strictly informational and not for flight planning purposes.

METAR

2026-10-30 01:52:00 EDT

Ceiling:	Sky clear
Wind:	010° @ 4kt
Temperature:	62°F
Dewpoint:	53°F
Weather:	N/A
Visbility:	10SM
Clouds:	Few @ 25,000ft

Raw: METAR KATL 300552Z 01004KT 10SM FEW250 17/12 A3020 RMK AO2 SLP222 T01720117 10206 20156 58003 $

Edit airport annotations

Airport Webcams

No webcams added yet.

Remarks

Rotg bcn lctd s of twy r7, n of twy sj2 nr fire station.
Be alert to rwy crossing clearances. readback of all rwy holding instructions is required.
Preferential rwy use in effect, expect to use rwys 08r/26l, 09l/27r for deps; rwys 08l/26r, 09r/27l are used primarily for arrivals.
Runups are permitted at various sites; coord use of city facs, movement areas, allowable non-movement areas with dept of avn opns, 404-787-6095; and coord the use of the airlines facs with them.
Noise & opns monitoring system (noms) program in effect; call the atlanta dept of aviation 770-43-noise or 770-436-6473 for more info.
All rwys, touch and go operations, low approaches, and practice instrument approaches not permitted.
Acft with a wingspan of greater than 214ft are restricted fm using twy f east of ramp 5 north and west of twy d.
Asde-x in use. operate transponders with altitude reporting mode and ads-b (if equipped) enabled on all airport surfaces.
Acft with wingspan greater than 171 ft are rstrd from using twy v. acft with wingspan greater than 171 ft are required to use taxi speeds less than 15 mph when passing acft with wingspan greater than 214ft on txwy l/m (east of l7).
Rwy 9l departures can expect intersection departure fm m2 with rwy remaining 11,440 ft (tora/toda) and 10,780 (asda).
All acft with wingspans greater than 214 ft are required to use taxi speeds not greater than 15 mph on twys a, l, m, and sj.
When acft with wingspans greater than 214 ft are present on the field, all other acft must adhere to the twy centerline on twys l and m, twys e and f, and twys sc and sj between sg and r due to separation between the parallel twys.
Acft with wingspan greater than 214 ft should expect to use rwys 09l/27r and 9r/27l.
Two acft with wingspans greater than 225 ft may not taxi simultaneously on adjacent parallel twys l/m except west of l7 at speeds less than 15 mph. no acft with wingspan 226 ft or gtr can taxi on twy m btn l14 and l16, twy n btn p and sc, or twy n btn u and k.
No acft with wingspan greater than 213 ft may pass another acft with wingspan greater than or equal to 225 ft on twy l/m east of l7.
No acft with wingspan gtr than 225 ft may taxi on twy m btn l14 and l16, twy n btn p and sc, and twy n btn u and k.
Acft with wingspan gtr than 171 ft and/or tail hgt gtr than 45 ft are rstd from using twy w. durg twy w opns rwy 27r intxn deps from twy lb or twy lc can expc the flwg dstcs with rwy rmng: from twy lb 11,040 ft (tora/toda) and 12,140 ft (asda); from twy lc 10,810 ft (tora/toda) and 11,910 ft (asda). acft may req the full len of rwy 27r for dep upon initial ctc with atc.
Papi rwy 26l unusbl byd 7 deg left and right of rcl.
Papi rwy 26r unusbl byd 6 deg left and 7 deg right of rcl.
Concrete hopper
Bird act on and invof arpt.
Markings prly obsc on rwy 08l/26r, rwy 09r/27l, and rwy 10/28 due to rubber build-up.
Acft should not exct the acute angled twy turn ebnd to nbnd from twy n to twy j.
Pcr value: 1437/r/d/w/t
Pcr value: 1307/r/c/w/t
Pcr value: 1336/r/c/w/t
Pcr value: 1068/r/c/w/t
Pcr value: 1378/r/c/w/t
When acft with wingspan greater than or equal to 172ft is present on twy e btn twy e13 & apch end rwy 26l, no acft with wingspan greater than or equal to 144ft may be present on echo pad.
