EWR - Newark Liberty Intl

Are you familiar with this airport? Help out other pilots by adding your local knowledge.

Tags

Public

Undocumented

METAR / TAF

Edit Tags

Food

Camping

Lodging

Car Rental

Bicycles

Swimming

Golfing

Fishing

Hot Springs

Museum

Flying Clubs

Airpark

Upcoming Events

No upcoming events. Is anything happening here soon?

Description

Transient Parking

Fuel Location

Landing & Tie-down Fees

Crew Car Availability

Flying Clubs

WiFi Access

Airport Statistics

Location: Newark, NJ

Elevation: 17ft

Sectional: New York

Activation date: Nov 1939

Fuel: 100LL, A (prices)

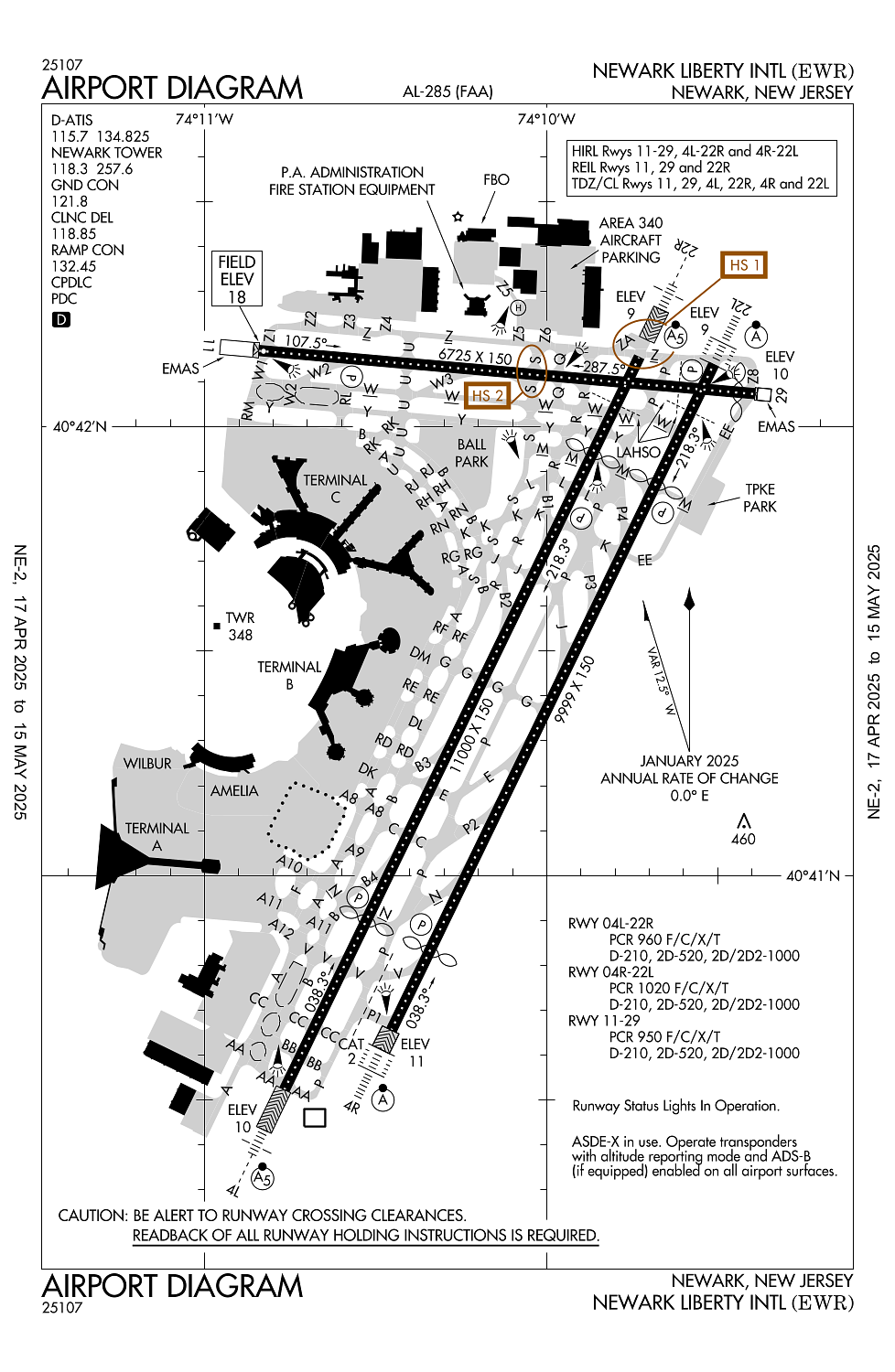

Runway 04L/22R: 11,000ft

Runway 04R/22L: 10,000ft

Runway 11/29: 6,726ft

Runway H1: 54ft

Access: Open to the public

Current Weather — MVFR

Weather data is strictly informational and not for flight planning purposes.

METAR

2024-05-19 08:51:00 EDT

Ceiling	Wind	Temperature	Dewpoint	Weather	Visbility
2,200ft	40° @ 12kt	64°F	55°F	N/A	10SM
Clouds: Broken @ 2,200ft, Broken @ 5,000ft

Raw: KEWR 191251Z 04012KT 10SM BKN022 BKN050 18/13 A3001 RMK AO2 SLP160 T01830128

TAF

2024-05-19 08:00:00 EDT – 2024-05-19 12:00:00 EDT

Ceiling	Wind	Weather	Visbility
2,500ft	20° @ 8kt	N/A	6SM
Clouds: Scattered @ 1,500ft, Broken @ 2,500ft

Raw:

KEWR 191120Z 1912/2018 02008KT P6SM SCT015 BKN025 FM191600 05007KT P6SM SCT025 BKN035 FM192100 12007KT P6SM BKN040 FM200300 09004KT P6SM SCT050 BKN250 FM200800 VRB05KT P6SM SCT015 BKN025 FM201500 05005KT P6SM SCT025 BKN035

TAF

2024-05-19 12:00:00 EDT – 2024-05-19 17:00:00 EDT

Ceiling	Wind	Weather	Visbility
3,500ft	50° @ 7kt	N/A	6SM
Clouds: Scattered @ 2,500ft, Broken @ 3,500ft

Raw:

KEWR 191120Z 1912/2018 02008KT P6SM SCT015 BKN025 FM191600 05007KT P6SM SCT025 BKN035 FM192100 12007KT P6SM BKN040 FM200300 09004KT P6SM SCT050 BKN250 FM200800 VRB05KT P6SM SCT015 BKN025 FM201500 05005KT P6SM SCT025 BKN035

TAF

2024-05-19 17:00:00 EDT – 2024-05-19 23:00:00 EDT

Ceiling Wind Weather Visbility

4,000ft 120° @ 7kt N/A 6SM

Clouds: Broken @ 4,000ft

Raw: KEWR 191120Z 1912/2018 02008KT P6SM SCT015 BKN025 FM191600 05007KT P6SM SCT025 BKN035 FM192100 12007KT P6SM BKN040 FM200300 09004KT P6SM SCT050 BKN250 FM200800 VRB05KT P6SM SCT015 BKN025 FM201500 05005KT P6SM SCT025 BKN035

Ceiling	Wind	Weather	Visbility
4,000ft	120° @ 7kt	N/A	6SM
Clouds: Broken @ 4,000ft

TAF

2024-05-19 23:00:00 EDT – 2024-05-20 04:00:00 EDT

Ceiling	Wind	Weather	Visbility
25,000ft	90° @ 4kt	N/A	6SM
Clouds: Scattered @ 5,000ft, Broken @ 25,000ft

Raw:

KEWR 191120Z 1912/2018 02008KT P6SM SCT015 BKN025 FM191600 05007KT P6SM SCT025 BKN035 FM192100 12007KT P6SM BKN040 FM200300 09004KT P6SM SCT050 BKN250 FM200800 VRB05KT P6SM SCT015 BKN025 FM201500 05005KT P6SM SCT025 BKN035

TAF

2024-05-20 04:00:00 EDT – 2024-05-20 11:00:00 EDT

Ceiling	Wind	Weather	Visbility
2,500ft	Variable	N/A	6SM
Clouds: Scattered @ 1,500ft, Broken @ 2,500ft

Raw:

KEWR 191120Z 1912/2018 02008KT P6SM SCT015 BKN025 FM191600 05007KT P6SM SCT025 BKN035 FM192100 12007KT P6SM BKN040 FM200300 09004KT P6SM SCT050 BKN250 FM200800 VRB05KT P6SM SCT015 BKN025 FM201500 05005KT P6SM SCT025 BKN035

TAF

2024-05-20 11:00:00 EDT – 2024-05-20 14:00:00 EDT

Ceiling	Wind	Weather	Visbility
3,500ft	50° @ 5kt	N/A	6SM
Clouds: Scattered @ 2,500ft, Broken @ 3,500ft

Raw:

KEWR 191120Z 1912/2018 02008KT P6SM SCT015 BKN025 FM191600 05007KT P6SM SCT025 BKN035 FM192100 12007KT P6SM BKN040 FM200300 09004KT P6SM SCT050 BKN250 FM200800 VRB05KT P6SM SCT015 BKN025 FM201500 05005KT P6SM SCT025 BKN035

Edit airport annotations

Airport Webcams

No webcams added yet.

Remarks

Flocks of birds on & invof arpt.
Noise rstr call 212-435-3784 drg nml bus hrs.
Para-sail & banner towing ops 1000 ft & blo in upper & lower ny bays including rockaway inlet indef.
Twy z btn twy z2 & z4 clsd to acft with wingspans in excess of 171 ft.
Asde-x in use. oper transponder with alt reporting mode and ads-b (if equipped) enabled on all arpt sfcs.
Rwy 4r & 4l dep use upper ant for atc com.
High volume of low level hel tfc arr and dep helo kearny heli (65nj) lctd 3.5 miles ne of arpt.
Rwy status lights in opr
Cpdlc departure clearance service available.
Adg iv acft rstr fm psg twy z3 on z
Twy z east of twy u acft speed rstr of 17 kts/20 mph max for all acft with wingspans in excess of 171 ft.
All twys surrounding "ballpark" prkg area (twy y btn twy s and twy u, twy s btn twy y and twy k, tway k btn twy s and twy b, twy b btn twy k and twy u, and twy u btn twy b and twy y) acft speed rstr of 17kts/20mph for all afct with wingspans in excess of 171 ft.
Twy ee btn rwy 4r-22l and rwy 11-29 clsd to afct with wingspans in excess of 171 ft.
Twy y btn rm and twy u, speed restriction of 17kt (20mph).
Twy z5 clsd to acft with wingspans in excess of 118 ft.
Twy a btn twy aa and ramp clsd to acft with wingspans in excess of 171 ft.
Twy a11 w of twy a acft spd rstr of 17 kts/20 mph max for all acft with wingspans in excess of 171 ft.
Acft with wingspans in excess of 118 feet prohibited from turning s on twy r from twy b1.
Durng atc zero events; arpt ops will mnt 118.3 and provide emerg notifications to arff
Ga/intrnt ldg fees payable by major credit cards only.
Property owned by city of newark.
Engineered materials arresting system (emas) 182 ft in length by 170 ft in width lctd at the der.
Engineered materials arresting system (emas) 437 ft in length by 178 ft in width lctd at the der.
Brewster pad; h1 lctd on twy z5. ops limits are d65.
Apch ratio 50:1 to dthr.
Apch ratio 13:1 to dthr.
Apch ratio 50:1 to dthr.
Apch ratio 50:1 to dthr.
Apch ratio 50:1 to dthr.
S 1779 ft conc, n 1228 ft conc, center 7993 ft asph.
When rwy 04r/l in use, acft prkg at trml a can exp to enter ramp via twy a8, unless adzd by atc.
When rwy 22l/r in use, acft prkg at trml a can exp to enter ramp via twy a10 or a12, unless adzd by atc.
